2 Color Rotary Plastic Screen Printing Machine CNC02

  • Product Item:CNC02
  • Category:CNC Plastic Screen Printing Machine
  • Views:1096
  • Type: CNC Machine

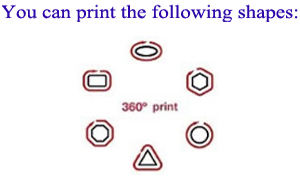

  • Can print Oval and Square with 4 sides at one time

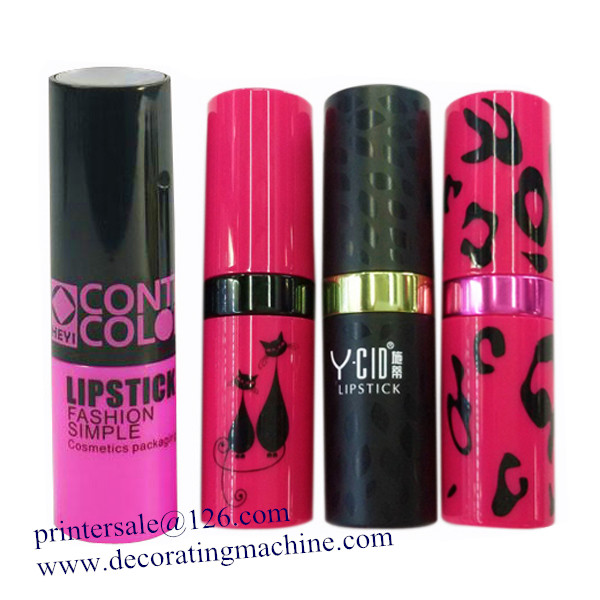

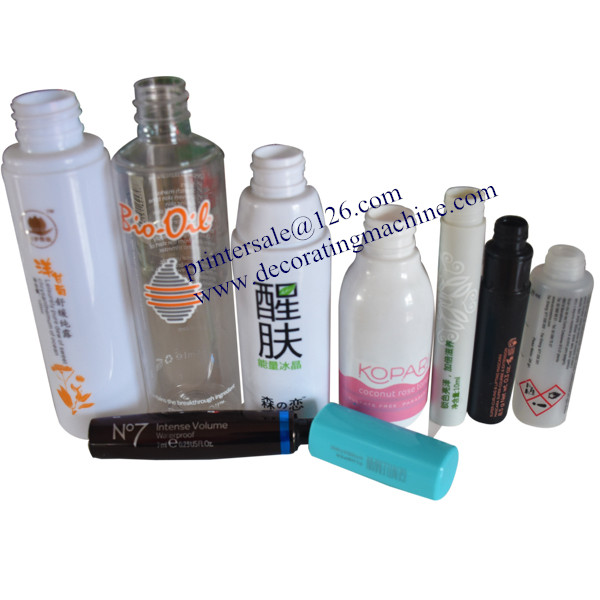

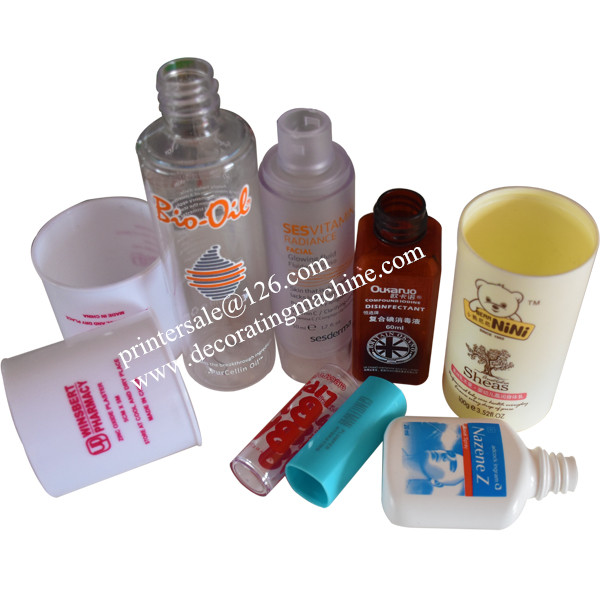

  • Product Manual:2 Color Rotary Plastic Screen Printing Machine to print plastic bottles, tubes,lip covers etc
BASIC INFO

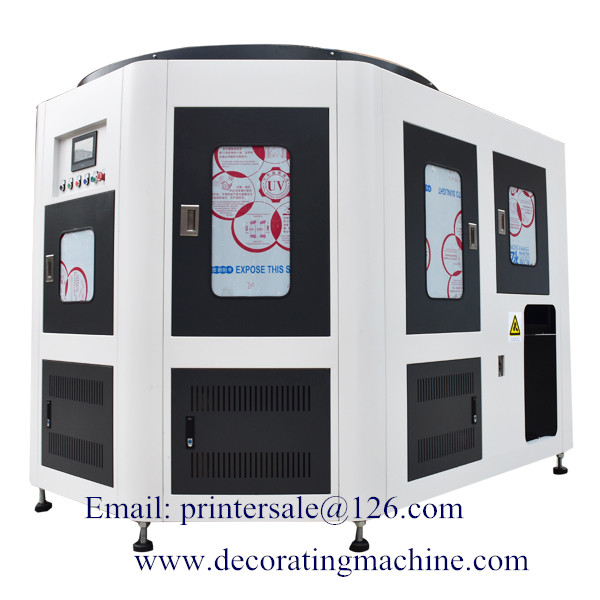

2 Color Rotary Plastic Screen Printing Machine

Product Name:2 Color Rotary Plastic Screen Printing Machine



Model: CNC02

Applications:

Rotary Plastic Decoration Machine is with LED UV curing system. It can print Glass and Plastic Bottle . In this series, We have 3 color machine to 6 color machine for your choosing.These machines can print  all shapes  of Glass\Plastic containers.Such as bottles, cups, mugs,container,wine bottles,baby feeding bottles etc.



Parameters:

A. Lay on Belt Loading Type

1.  Printing Size (mm) :   Bottle Dia.10-40mm    Bottle Height: 20-150mm

2. Speed (pcs/min.) :  40-45pcs/min

3. Air Pressure : 5-7Bars

4.Power : 380V 3P  20Kw

5. Weight (Kg) : 2500kgs

6. Packing Size (L*W*H mm) : 2800mm* 2250mm*2200mm



 B. Stand Up LoadingType

1.  Printing Size (mm) :   Bottle Dia.40-80mm    Bottle Height: 30-300mm

2. Speed (pcs/min.) :  40-45pcs/min

3. Air Pressure : 5-7Bars

4.Power : 380V 3P  20Kw

5. Weight (Kg) : 2500kgs

6. Packing Size (L*W*H mm) : 2800mm* 2250mm*2200mm



Features:

1.Automatic loading and unloading system

2.Automatic LED UV curing with high efficiency

3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container

 up/down all driven by servo motors.

5.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.

6.PLC control & touch screen operation system, internet cable connection available, easy for future maintenance and upgrading

8.Safety operation with CE

9.Can use thermoplastic ink or LED UV ink.

10.The CNC screen printer can equip with 2 visual registration as per customer requirement.

plastic lip cover screen printing machineplastic bottles, containers printing machine
