Economic CNC UV Glass Bottle/Container Screen Printer PT12

  • Product Item:PT12
  • Category:CNC Glass Screen Printing Machine
  • Views:1226
  • Type: CNC Machine

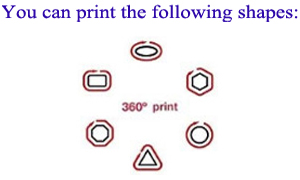

  • Can print Oval and Square with 4 sides at one time
  • Product Manual:Economic CNC UV Glass Bottle Screen Printer to print glass bottles, containers,cups, mugs etc
BASIC INFO

Economic CNC UV Glass Bottle Screen Printer



Economic CNC UV Glass Screen Printer Product Name: Economic CNC UV Glass Bottle Screen Printer

Model: PT12

Applications:

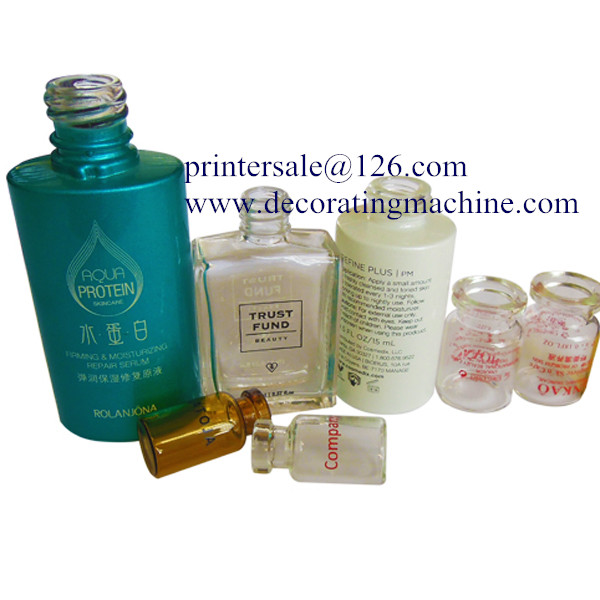

  This Multi-function Automatic Screen Printer is servo system machine for single color printing,  It fits for printing glass bottles, cups, containers etc with high production speed.

     It can print any shape of containers all around in once time printing.

Parameters:

1.Printing size: Bottle Diameter: 15-70mm

                     Bottle Height: 25-170mm

2. Speed: 30-40pcs/min

3.Air pressure: 5-7bars

4.Power: 380V 3P 7.5KW

5.Weight: 600kgs

6.Packing size(L*W*H): 1700MM*1500MM*2100mm

Features:

1.Automatic loading and unloading system with multi axis servo robot

2.Without UV Curing system

3.Fast tooling changeover time, it's about 15 minutes for each color. All parameters automatic setting by touch screen.

4.All servo motors with industrial PLC control & touch screen operation system

5.Can use thermoplastic ink or UV ink.

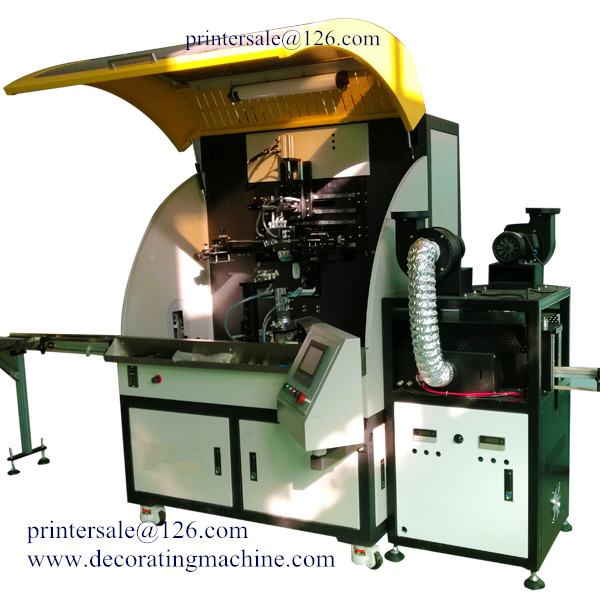

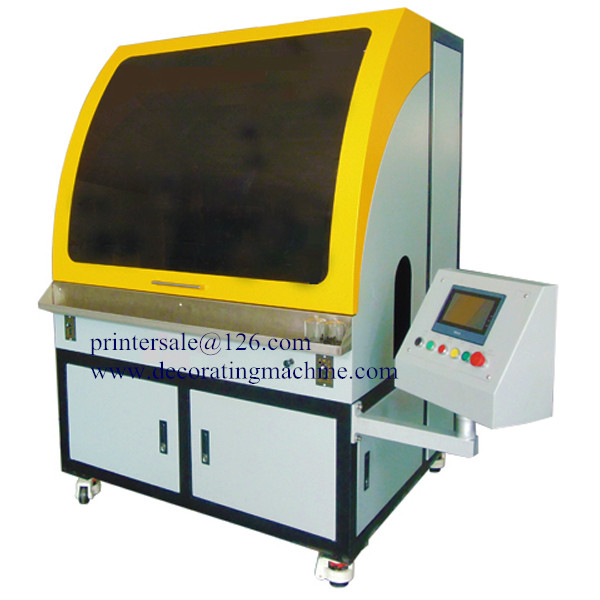

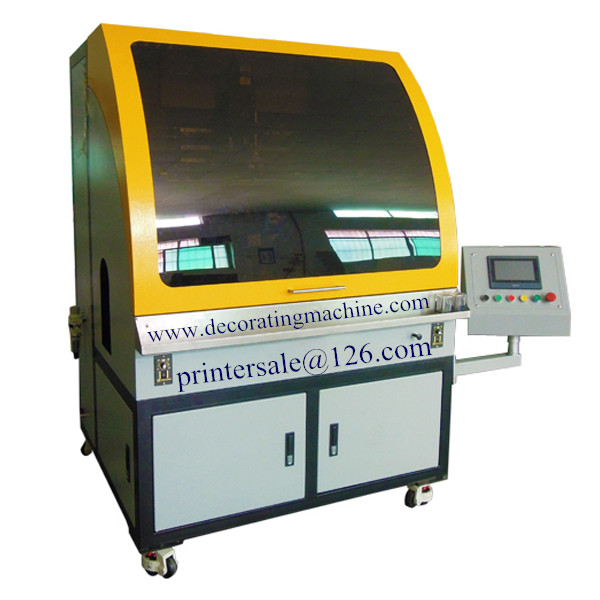

Economic CNC UV Glass Bottle Screen Printer Photos
