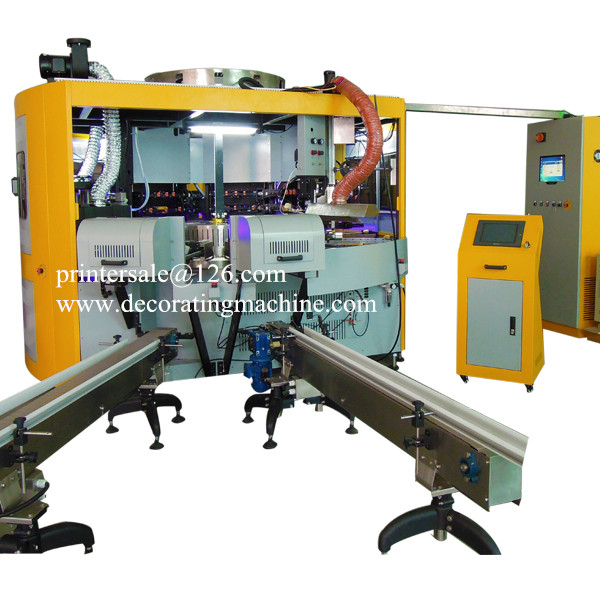

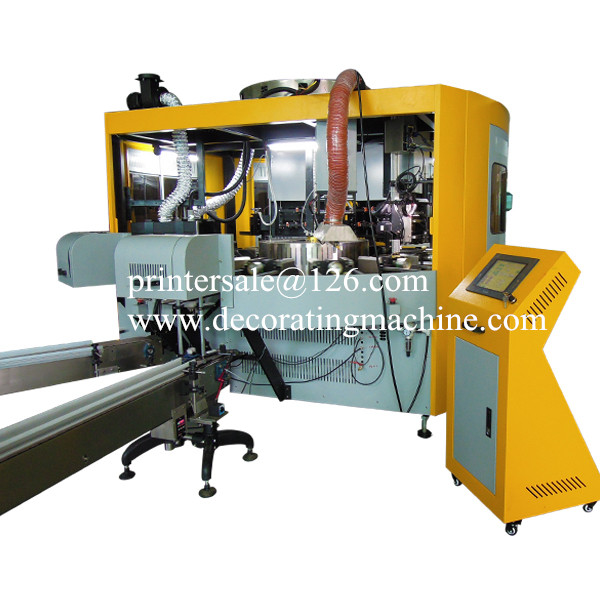

3 Color CNC Glass Bottle/Mug Screen Printer

Product Name:3 Color CNC Glass Bottle/Mug Screen Printer

Model: CNC03

Applications:

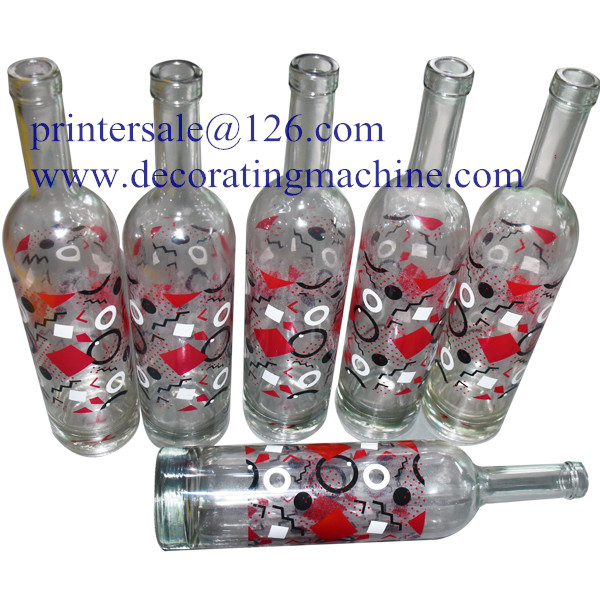

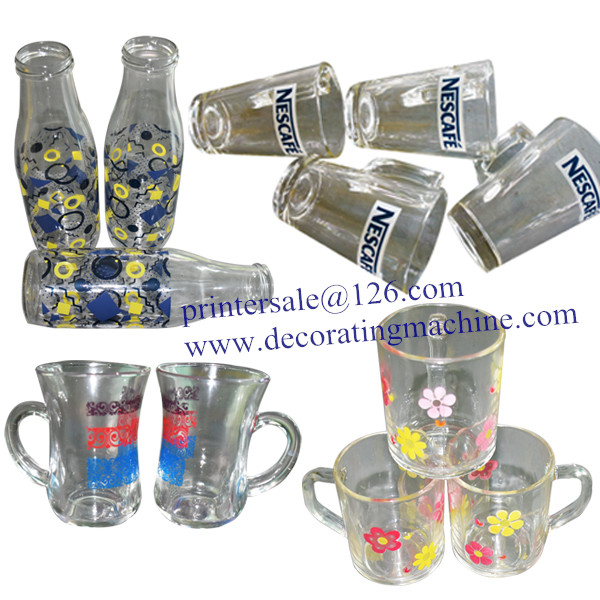

Automatic LED UV Glass Bottle Screen Printer is a machine which can print all shapes of Glass\Plastic containers.Such as bottles, cups, mugs,container,wine bottles,baby feeding bottles etc.

Parameters:

1.Printing size: Bottle Diameter: 30-100mm

Bottle Height: 30-330mm

2. Speed: 45-50pcs/min

3.Air pressure: 5-7bars

4.Power: 380V 3P 25KW

5.Weight: 3000kgs

6.Packing size(L*W*H): 3000MM*2400MM*2400mm

Features:

1.Automatic loading and unloading system

2.Automatic LED UV curing with high efficiency electrode LED UV system

3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container

up/down all driven by servo motors.

5.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.

6.All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available, easy for future maintenance and upgrading

8.Safety operation with CE

9.Can use thermoplastic ink or LED UV ink.

10.The CNC screen printer can equip with visual registration as per customer requirement.
