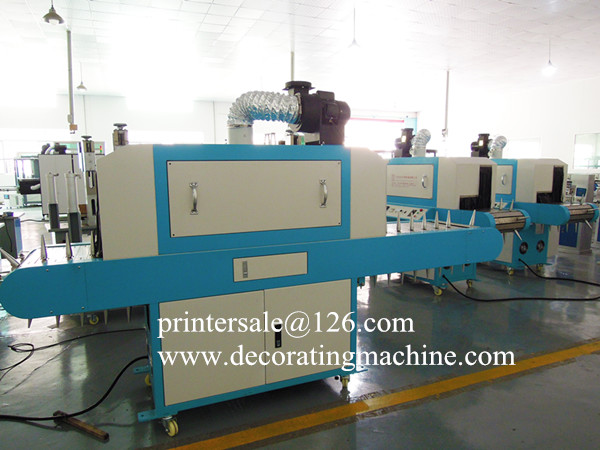

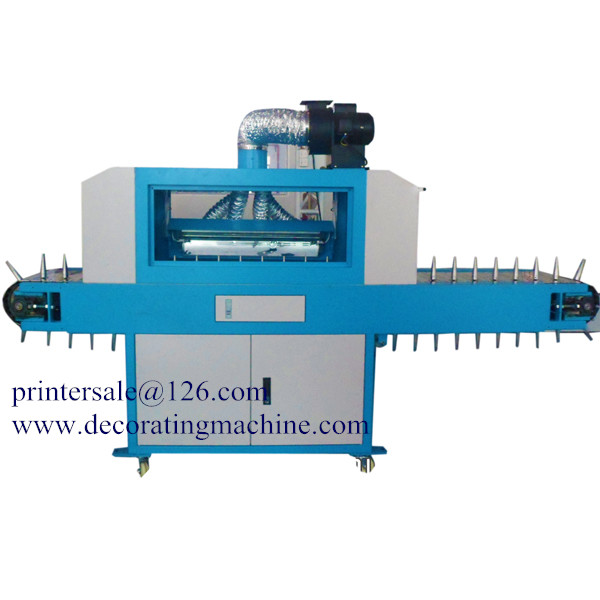

Round and Flat Bottle UV Oven PR

Product Name: Round and Flat Bottle UV Oven PR

Model:PR

Applications:
The machine is suitable for drying and curing the round, oval plastic or glass bottles.

It is widely used in the cosmetic, house hold product bottles final step printing curing.

The tooling holder is removable so it is also suitable for flat products curing.

Features:

Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate.

Enclosure construction with conveyor.

By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat or curved substrate;

On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .

Parameters:

1.Conveyor Length: 2800mm, width: 430mm.

2.Bottle height:20-300mm

3.Bottle mouth diameter:Φ12-26mm  Bottle Dia.: Max.150mm

4.Speed(Pieces/minute): 25-40pcs

5.Machine size: 280*780*175CM (L x W x H)

6.Net Weight: 320kg　　

7.Air Pressure(Bar): 5-7　

8. UV lamp power:5Kw

9.Power: AC 380V/ 50Hz 3-Phase 7KW
