Semi-auto Glass and Plastic CNC Screen Printer

  • Product Item:CNC400
  • Category:CNC Glass Screen Printing Machine
  • Views:1067
  • Type: Semi-auto CNC Screen Printer
  • Can print Oval and Square with 4 sides at one time
  • Product Manual:Semi-auto Glass and Plastic CNC Screen Printer
BASIC INFO

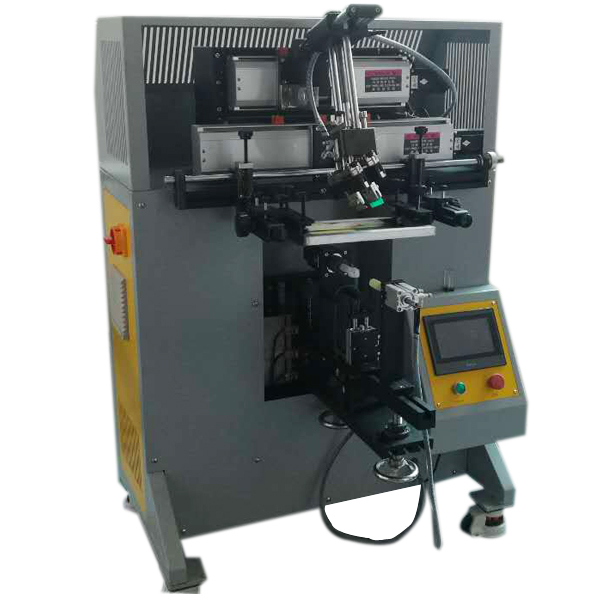

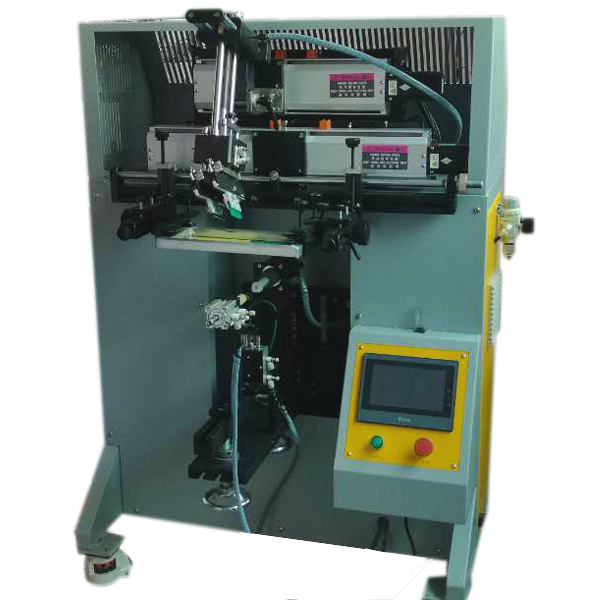

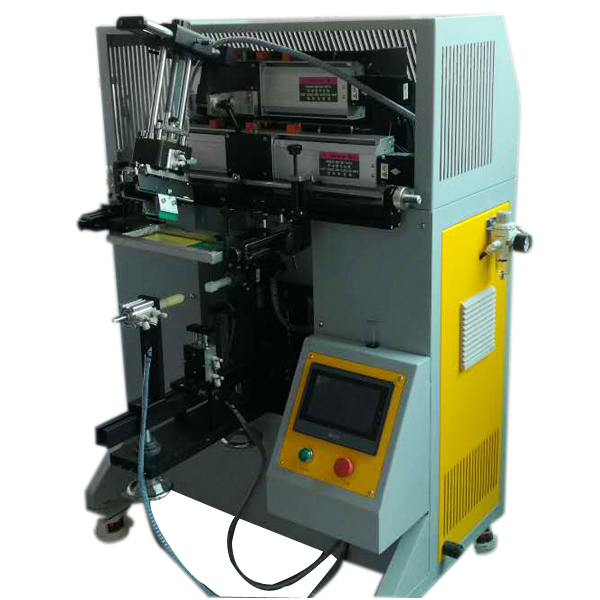

Semi-auto Glass and Plastic CNC Screen Printer

250 RMB15600, 含税。 CNC400 RMB89600 含税价 Semi-auto CNC Screen Printer 400 半自动伺服机 Product Name: Semi-auto CNC Screen Printer 400 Model: CNC400 Applications: Semi-auto CNC Screen Printing Machine 400 is suitable for printing cylindrical, Oval and Flat articles. It can print on the material of metal, plastic, ceramic, glass, wood etc. Printing article including lipstick, cosmetic bottles, drink bottles, ceramic mugs,lunch box,plastic container, glasses cups, mug, plastics cups, oil-filter shell etc. Remarks: No matter what product you print,this machine no using the gear, all is controlled by servo. Which can save much adjusting time,and low requirement for the operator person. It can print oval product with 2 sides or print square product with 4 sides at one pass printing. This machine can Save 16 products printing datas, you can Read it and print the same product directly next time. 用途: 适用于丝印任何形状的产品,比如圆形,方形(可选择一面或者多面印刷,可一次完成4面印刷),椭圆,三角形,平面,微锥形产品的印刷。适合材质: 塑料,玻璃,铝合金等等。 备注: 此款机器无论印什么形状的产品,均无需齿轮,大大节省了调机时间。对操作人员技术要求不高,易操作。印椭圆可以一次印2面,或者4方瓶一次可完成4面印刷。 此机可以存储16款产品,下次遇到一样的产品印刷时,可直接调出参数,直接印刷。 Parameters: 1.Max printing Size:Bottle Diameter Φ6mm*100mm; Bottle Height: 20*330mm 2.Speed:25Pcs/Min. 3.Air pressure: 5-7 Bar 4.Machine weight: 250kg 7..Machine size:120X900X130CM(LxWxH) 8. Power support:220V 50HZ 2.5KW 参数: 1.印刷尺寸 瓶直径:6-100毫米; 瓶高度: 20--330毫米 2.速度:25个/分钟 3.气压:5-7帕 4.机器重量:250公斤 5.功率:220V 50赫兹 2.5千瓦 6.尺寸:120X900X130厘米 (长宽高) Product Name: Semi-auto CNC Screen Printer 400

Model: CNC400


Applications:

Semi-auto CNC Screen Printing Machine 400 is suitable for printing cylindrical, Oval and Flat articles.

It can print on the material of metal, plastic, ceramic, glass, wood etc.

Printing article including lipstick, cosmetic bottles, drink bottles, ceramic mugs,lunch box,plastic container, glasses cups, mug, plastics cups, oil-filter shell etc.

Remarks: No matter what product you print,this machine no using the gear, all is controlled by servo. Which can save much adjusting time,and low requirement for the operator person. It can print oval product with 2 sides or print square product with 4 sides at one pass printing.

This machine can Save 16 products printing datas, you can Read it and print the same product directly next time.


Parameters:

1.Max printing SizeBottle Diameter Φ6mm*100mm;  Bottle Height: 20*330mm

2.Speed25-30 Pcs/Min.
3.Air pressure: 5-7 Bar
4.Machine weight: 250kg

7..Machine size120X900X130CM(LxWxH)
8. Power support220V 50HZ  2.5KW
