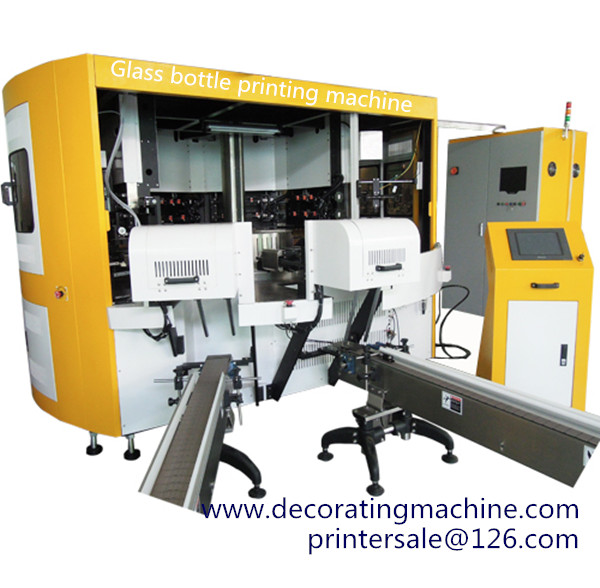

6 Color Sport Bottle LED UV Screen Printer CNC06

  • Product Item:CNC06
  • Category:CNC Glass Screen Printing Machine
  • Views:848
  • Full Servo system
  • Automatic
  • Fast Speed
  • Product Manual:6 Color Sport Bottle LED UV Screen Printer to print sport bottles, cosmetic containers,wine bottles etc
BASIC INFO

Product Name: 6 Color Sport Bottle LED UV Screen Printer

Model:CNC06


Applications:

6 Color Sport Bottle LED UV Screen Printer is a machine which can print all shapes bottles, cups, mugs,containers etc.


Parameters:

1.Printing size: Bottle Diameter: 30-100mm Bottle Height: 30-330mm

2. Speed: 45-50pcs/min

3.Air pressure: 5-7bars

4.Power: 380V 3P 32KW

5.Weight: 7000kgs 6.Packing size(L*W*H): 4000MM*400MM*2400mm


Features:

1.Can print square and oval glass bottles with 4 sides at one time printing

2.Automatic loading and unloading system

3.Automatic LED UV curing with high efficiency electrode LED UV system

4.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container up/down all driven by servo motors.

5.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.

6.All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available, easy for future maintenance and upgrading

7.with CE certification

8.Can use thermoplastic ink or LED UV ink.

9.The CNC screen printer can equip with visual registration as per customer requirement.

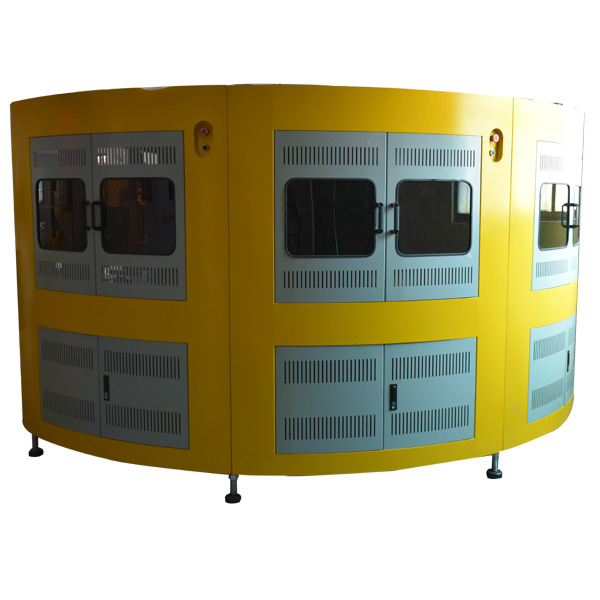

6 color Rotary Glass Screen Printing Machine

Rotary Screen Printing machine for plastic bottles
